AbstractChannelData#

class esis.data.abc.AbstractChannelData(inputs=0, outputs=0, *, axis_time='time', axis_channel='channel', axis_x='detector_x', axis_y='detector_y')[source]#

Bases: AbstractImageData

An interface for representing images in the coordinate system of the sensor.

Attributes

`axes`	A `tuple` of `str` representing the names of each dimension of this array.
`axes_center`	Return keys corresponding to all input axes representing bin centers
`axes_flattened`	Combine `axes` into a single `str`.
`axes_vertex`	Return keys corresponding to all input axes representing bin vertices
`axis_channel`	The name of the logical axis corresponding to the different channels.
`axis_time`	The name of the logical axis corresponding to changing time.
`axis_x`	The name of the horizontal axis of the sensor.
`axis_xy`	A `tuple` containing `axis_x` and `axis_y`.
`axis_y`	The name of the vertical axis of the sensor.
`broadcasted`	if this array has multiple components, broadcast them against each other.
`channel`	The name of each ESIS channel in a human-readable format.
`explicit`	Converts this array to an instance of `named_arrays.AbstractExplicitArray`.
`indices`	Compute the index of each element of this array.
`inputs`	The inputs of the function.
`length`	L2-norm of this array.
`ndim`	Number of dimensions of the array.
`num_x`	The number of pixels along the horizontal axis.
`num_y`	The number of pixels along the vertical axis.
`outputs`	The outputs of the function.
`shape`	The number of elements along each axis of the array.
`size`	Total number of elements in the array.
`type_abstract`	The `named_arrays.AbstractArray` type corresponding to this array.
`type_explicit`	The `named_arrays.AbstractExplicitArray` type corresponding to this array.
`value`	Returns a new array with its units removed, if they exist.

Methods

`__init__`([inputs, outputs, axis_time, ...])
`add_axes`(axes)	Add new singleton axes to this array.
`all`([axis, where])	Return `True` if all of the elements along the given axes are `True`.
`animate`([ax, cmap, norm, vmin, vmax, ...])	Create an animation using the frames in this dataset.
`any`([axis, where])	Return `True` if any of the elements along the given axes are `True`.
`astype`(dtype[, order, casting, subok, copy])	Copy of the array cast to a specific data type.
`broadcast_to`(shape[, append])	A new view of this array with the specified shape.
`cell_centers`([axis, random])	Convert an array from cell vertices to cell centers.
`combine_axes`([axes, axis_new])	Combine some of the axes of the array into a single new axis.
`copy`()	Create a deep copy of this array.
`copy_shallow`()	Create a shallow copy of this array.
`from_scalar_array`(a[, like])	Constructs a new version of this array using `a` as the underlying data.
`index`(value[, axis])
`index_secant`(value[, axis])
`interp_linear`(item)	Linearly interpolate this array to find its value at the given fractional index.
`max`([axis, initial, where])	The maximum value of this array along the given axes.
`mean`([axis, where])	The mean value of this array along the given axes.
`median`([axis])	The median value of this array along the given axes.
`min`([axis, initial, where])	The minimum value of this array along the given axes.
`ndindex`([axis_ignored])	An iterator that yields the index of each element of this array.
`pcolormesh`(axs, input_component_x, ...[, ...])	Plot a `FunctionArray` via `matplotlib.pyplot.pcolormesh()`.
`percentile`(q[, axis, out, overwrite_input, ...])	The requested percentile of this array along the given axes.
`ptp`([axis])	The peak-to-peak value of this array along the given axes.
`regrid`(inputs[, axis, method, weights])	Resample this function array onto a new set of input coordinates using `named_arrays.regridding.regrid()`.
`replace`(**changes)	A method version of `dataclasses.replace()` for named arrays.
`reshape`(shape)	Reorganize this array into a new shape.
`rms`([axis, where])	The root-mean-square of this array along the given axes.
`std`([axis, where])	The standard deviation of this array along the given axes.
`sum`([axis, where])	The sum of each element of this array along the given axes.
`to`(unit[, equivalencies, copy])	Convert this array to a new unit.
`to_jshtml`([ax, cmap, norm, vmin, vmax, ...])	Create a Javascript animation ready to be displayed in a Jupyter notebook.
`to_string`([prefix, multiline])	Convert this array instance to a string representation.
`to_string_array`([format_value, format_unit, ...])	Convert to an array of strings where each string has an appropriately-formatted unit attached to the value.
`to_value`(unit[, equivalencies])	The numerical value of this array, possibly in a different unit.
`transpose`([axes])	Reorder the axes of this array to the given sequence.
`var`([axis, where])	The variance of this array along the given axes.
`vmr`([axis, where])	The variance-to-mean ratio of this array along the given axes.
`volume_cell`(axis)	Computes the n-dimensional volume of each cell formed by interpreting this array as a logically-rectangular grid of vertices.
`weights`(inputs[, axis, method])	Compute the resampling weights of this array using `named_arrays.regridding.weights()`.

Inheritance Diagram

Parameters:

inputs (InputsT)
outputs (OutputsT)
axis_time (str)
axis_channel (str)
axis_x (str)
axis_y (str)

classmethod from_scalar_array(a, like=None)#

Constructs a new version of this array using a as the underlying data.

Parameters:

a (float | Quantity | AbstractScalarArray) – Anything that can be coerced into an instance of named_arrays.AbstractScalarArray.
like (None | Self) – Optional reference object. If provided, the result will be defined by this object.

Return type:

Self

add_axes(axes)#

Add new singleton axes to this array.

Parameters:: axes (str | Sequence[str]) – Either a single axis name or a sequence of axis names add to this array.
Return type:: FunctionArray

See also

named_arrays.add_axes(): A functional version of this method.

all(axis=None, where=<no value>)#

Return True if all of the elements along the given axes are True.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.all(): A functional version of this method.

animate(ax=None, cmap=None, norm=None, vmin=None, vmax=None, cbar_fraction=0.1)[source]#

Create an animation using the frames in this dataset.

Parameters:

ax (None | Axes | AbstractArray) – The Axes instance(s) to use. If None, a new set of axes will be created.
cmap (None | str | Colormap) – The colormap used to map scalar data to colors.
norm (None | str | Normalize) – The normalization method used to scale data into the range [0, 1] before mapping to colors.
vmin (None | int | float | complex | ndarray | Quantity | AbstractArray) – The minimum value of the data range. If norm is None, this parameter will be ignored.
vmax (None | int | float | complex | ndarray | Quantity | AbstractArray) – The maximum value of the data range. If norm is None, this parameter will be ignored.
cbar_fraction (float) – The fraction of the space to use for the colorbar axes.

Return type:

FuncAnimation

any(axis=None, where=<no value>)#

Return True if any of the elements along the given axes are True.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.any(): A functional version of this method.

astype(dtype, order='K', casting='unsafe', subok=True, copy=True)#

Copy of the array cast to a specific data type.

Equivalent to numpy.ndarray.astype().

Parameters:

dtype (str | dtype | type)
order (str)
subok (bool)
copy (bool)

Return type:

FunctionArray

broadcast_to(shape, append=False)#

A new view of this array with the specified shape.

Parameters:

shape (dict[str, int]) – The shape of the new array.
append (bool) – If True, shape will be appended to the current shape of this array before broadcasting.
self (Self)

Return type:

Self

See also

named_arrays.broadcast_to(): A functional version of this method.

cell_centers(axis=None, random=False)#

Convert an array from cell vertices to cell centers.

Parameters:

axis (None | str | Sequence[str]) – The axes of the array to average over.
random (bool) – If true, select a random point within each cell instead of the geometric center.

Return type:

AbstractExplicitArray

combine_axes(axes=None, axis_new=None)#

Combine some of the axes of the array into a single new axis.

Parameters:

axes (Sequence[str]) – The axes to combine into a new axis
axis_new (str) – The name of the new axis

Return type:

Array with the specified axes combined

copy()#

Create a deep copy of this array.

Parameters:: self (Self)
Return type:: Self

copy_shallow()#

Create a shallow copy of this array.

Parameters:: self (Self)
Return type:: Self

index(value, axis=None)#

Parameters:

self (Self)
value (Self)
axis (None | str | Sequence[str])

Return type:

dict[str, Self]

index_secant(value, axis=None)#

Parameters:

self (Self)
value (Self)
axis (None | str | Sequence[str])

Return type:

dict[str, Self]

interp_linear(item)#

Linearly interpolate this array to find its value at the given fractional index.

Parameters:: item (dict[str, AbstractArray]) – A fractional index at which to evaluate the array.
Return type:: FunctionArray

max(axis=None, initial=<no value>, where=<no value>)#

The maximum value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
initial (_Buffer | _SupportsArray[dtype[Any]] | _NestedSequence[_SupportsArray[dtype[Any]]] | complex | bytes | str | _NestedSequence[complex | bytes | str]) – The initial value of the minimum, required if where provided.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.max(): A functional version of this method.

mean(axis=None, where=<no value>)#

The mean value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.mean(): A functional version of this method.

median(axis=None)#

The median value of this array along the given axes.

Parameters:: axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.

See also

numpy.median(): A functional version of this method.

min(axis=None, initial=<no value>, where=<no value>)#

The minimum value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
initial (_Buffer | _SupportsArray[dtype[Any]] | _NestedSequence[_SupportsArray[dtype[Any]]] | complex | bytes | str | _NestedSequence[complex | bytes | str]) – The initial value of the minimum, required if where provided.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.min(): A functional version of this method.

ndindex(axis_ignored=None)#

An iterator that yields the index of each element of this array.

Parameters:

axis_ignored (None | str | Sequence[str]) – The of the array to ignore when generating the iterator.
self (Self)

Return type:

Iterator[dict[str, int]]

See also

named_arrays.ndindex(): A functional version of this method.

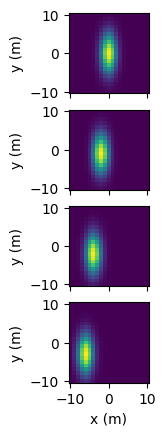

pcolormesh(axs, input_component_x, input_component_y, input_component_row=None, input_component_column=None, index=None, output_component_color=None, **kwargs)#

Plot a FunctionArray via matplotlib.pyplot.pcolormesh().

FunctionArray.pcolormesh() takes in an axes object, or array of axes objects, along with components to be plotted along the x and y plot axes (input_component_x and input_component_y). Additional components can be tiled along subplot row/column and are specified in input_component_row and input_component_column.

import named_arrays as na
import numpy as np
import astropy.units as u
import matplotlib.pyplot as plt

position = na.Cartesian2dVectorLinearSpace(
    start=-10,
    stop=10,
    axis=na.Cartesian2dVectorArray(
        x='position_x',
        y='position_y',
    ),
    num=21,
) * u.m

x_width = 5 * u.m
y_width = 2 * u.m
velocity = 1 * u.m/u.s
time = na.ScalarLinearSpace(
    start=0 * u.s,
    stop=3 * u.s,
    num=4,
    axis='time'
)

intensity = np.exp(-(((position.x + velocity*time)/x_width) ** 2 + ((position.y + 2*velocity*time)/y_width)** 2))
scene = na.FunctionArray(
    inputs=position,
    outputs=intensity,
)

fig, axs = plt.subplots(
    nrows=scene.outputs.shape['time'],
    squeeze=False,
    sharex=True,
    subplot_kw=dict(aspect='equal'),
)
scene.pcolormesh(
    axs=axs,
    input_component_x='x',
    input_component_y='y',
    input_component_row='time',
)

../_images/esis.data.abc.AbstractChannelData_0_0.png

Parameters:

axs (ndarray)
input_component_x (str)
input_component_y (str)
input_component_row (None | str)
input_component_column (None | str)
index (None | dict[str, int])
output_component_color (None | str)
kwargs (Any)

percentile(q, axis=None, out=None, overwrite_input=False, method='linear', keepdims=False)#

The requested percentile of this array along the given axes.

Parameters:

q (int | float | Quantity | Self) – The percentile to compute.
axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
out (None | Self) – An optional output array in which to place the result.
overwrite_input (bool) – Whether to overwrite the input array.
method (str) – How to interpolate the result.
keepdims (bool) – A boolean flag indicating whether to keep the reduced dimensions.
self (Self)

See also

numpy.percentile(): A functional version of this method.

ptp(axis=None)#

The peak-to-peak value of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
self (Self)

Return type:

Self

See also

numpy.ptp(): A functional version of this method.

regrid(inputs, axis=None, method='multilinear', weights=None)#

Resample this function array onto a new set of input coordinates using named_arrays.regridding.regrid().

Parameters:

inputs (AbstractArray) – The new input coordinates on which to resample the outputs.
axis (None | str | tuple[str]) – The logical axes of the input over which to resample.
method (Literal['multilinear', 'conservative']) – The resampling method to use.
weights (None | tuple[AbstractScalar, dict[str, int], dict[str, int]]) – Optional weights which can be computed in advance using weights() to greatly speed repeated resampling of the same inputs.

Return type:

Self

See also

weights(): If you need to resample the same coordinates more than once.

replace(**changes)#

A method version of dataclasses.replace() for named arrays.

Parameters:: changes – The fields of the dataclass to be overwritten
Return type:: Self

reshape(shape)#

Reorganize this array into a new shape.

Parameters:

shape (dict[str, int]) – The new shape of the array, must be compatible with this array.
self (Self)

Return type:

Self

rms(axis=None, where=<no value>)#

The root-mean-square of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

std(axis=None, where=<no value>)#

The standard deviation of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.std(): A functional version of this method.

sum(axis=None, where=<no value>)#

The sum of each element of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.sum(): A functional version of this method.

to(unit, equivalencies=[], copy=True)#

Convert this array to a new unit.

Equivalent to astropy.units.Quantity.to().

Parameters:

unit (UnitBase) – New unit of the returned array
equivalencies (None | list[tuple[Unit, Unit]]) – A list of equivalence pairs to try if the units are not directly convertible.
copy (bool) – Boolean flag controlling whether to copy the array.

Return type:

FunctionArray

to_jshtml(ax=None, cmap=None, norm=None, vmin=None, vmax=None, cbar_fraction=0.1, fps=None)[source]#

Create a Javascript animation ready to be displayed in a Jupyter notebook.

Converts the output of animate() to Javascript using matplotlib.animation.Animation.to_jshtml(), and then wraps the html string in IPython.display.HTML.

Parameters:

ax (None | Axes | AbstractArray) – The Axes instance(s) to use. If None, a new set of axes will be created.
cmap (None | str | Colormap) – The colormap used to map scalar data to colors.
norm (None | str | Normalize) – The normalization method used to scale data into the range [0, 1] before mapping to colors.
vmin (None | int | float | complex | ndarray | Quantity | AbstractArray) – The minimum value of the data range. If norm is None, this parameter will be ignored.
vmax (None | int | float | complex | ndarray | Quantity | AbstractArray) – The maximum value of the data range. If norm is None, this parameter will be ignored.
cbar_fraction (float) – The fraction of the space to use for the colorbar axes.
fps (None | float) – The frames per second of the animation.

Return type:

HTML

to_string(prefix=None, multiline=None)#

Convert this array instance to a string representation.

Parameters:

prefix (None | str) – the length of this string is used to align the output
multiline (None | bool) – flag which controls if the output should be spread over multiple lines.

Return type:

array represented as a str

to_string_array(format_value='%.2f', format_unit='latex_inline', pad_unit='$\\,$')#

Convert to an array of strings where each string has an appropriately-formatted unit attached to the value.

Parameters:

format_value (str) – The string used to format the numeric value of each element.
format_unit (str) – The string used to format the units of each element.
pad_unit (str) – The string used to add horizontal space between the value and unit.

to_value(unit, equivalencies=[])#

The numerical value of this array, possibly in a different unit.

Equivalent to astropy.units.Quantity.to_value().

Parameters:

unit (UnitBase) – New unit of the returned array
equivalencies (None | list[tuple[Unit, Unit]]) – A list of equivalence pairs to try if the units are not directly convertible.

Return type:

FunctionArray

transpose(axes=None)#

Reorder the axes of this array to the given sequence.

Parameters:

axes (None | Sequence[str]) – The new axis ordering of this array.
self (Self)

Return type:

Self

See also

numpy.transpose(): The numpy version of this method.

var(axis=None, where=<no value>)#

The variance of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.
self (Self)

Return type:

Self

See also

numpy.var(): A functional version of this method.

vmr(axis=None, where=<no value>)#

The variance-to-mean ratio of this array along the given axes.

Parameters:

axis (None | str | Sequence[str]) – The logical axis or axes along which the operation is computed.
where (Self) – An optional mask which selects which elements to be considered.

volume_cell(axis)#

Computes the n-dimensional volume of each cell formed by interpreting this array as a logically-rectangular grid of vertices.

Note that this method is usually only used for sorted arrays.

If self is a scalar, this method computes the length of each edge, and is equivalent to numpy.diff(). If self is a 2d vector, this method computes the area of each quadrilateral, and if self is a 3d vector, this method computes the volume of each cuboid.

Parameters:: axis (None | str | Sequence[str]) – The axis or axes defining the logically-rectangular grid. If self is a physical scalar, there should only be one axis. If self is a physical vector, there should be one axis for each component of the vector.
Return type:: AbstractScalar

weights(inputs, axis=None, method='multilinear')#

Compute the resampling weights of this array using named_arrays.regridding.weights(). The output of this method is designed to be used by regrid().

Parameters:

inputs (AbstractArray) – The new input coordinates on which to resample the outputs.
axis (None | str | tuple[str]) – The logical axes of the input over which to resample.
method (Literal['multilinear', 'conservative']) – The resampling method to use.

Return type:

tuple[AbstractScalar, dict[str, int], dict[str, int]]

See also

regrid(): A method designed to use these weights.

property axes: tuple[str, ...]#

A tuple of str representing the names of each dimension of this array.

Must have the same length as the number of dimensions of this array.

property axes_center: tuple(str)#: Return keys corresponding to all input axes representing bin centers

property axes_flattened: str#

Combine axes into a single str.

This is useful for functions like numpy.flatten() which returns an array with only one dimension.

property axes_vertex: tuple(str)#: Return keys corresponding to all input axes representing bin vertices

axis_channel: str = 'channel'#: The name of the logical axis corresponding to the different channels.

axis_time: str = 'time'#: The name of the logical axis corresponding to changing time.

axis_x: str = 'detector_x'#: The name of the horizontal axis of the sensor.

property axis_xy#: A tuple containing axis_x and axis_y.

axis_y: str = 'detector_y'#: The name of the vertical axis of the sensor.

property broadcasted: FunctionArray#

if this array has multiple components, broadcast them against each other.

Equivalent to a.broadcast_to(a.shape).

property channel: ScalarArray[ndarray[tuple[Any, ...], dtype[str]]]#: The name of each ESIS channel in a human-readable format.

property explicit: FunctionArray#: Converts this array to an instance of named_arrays.AbstractExplicitArray.

property indices: dict[str, ScalarArrayRange]#

Compute the index of each element of this array.

See also

named_arrays.indices(): A functional version of this method.

inputs: InputsT = 0#: The inputs of the function.

property length: FunctionArray#: L2-norm of this array.

property ndim: int#: Number of dimensions of the array. Equivalent to numpy.ndarray.ndim.

property num_x: int#: The number of pixels along the horizontal axis.

property num_y: int#: The number of pixels along the vertical axis.

outputs: OutputsT = 0#: The outputs of the function.

property shape: dict[str, int]#: The number of elements along each axis of the array. Analogous to numpy.ndarray.shape but represented as a dict where the keys are the axis names and the values are the axis sizes.

property size: int#: Total number of elements in the array. Equivalent to numpy.ndarray.size

property type_abstract: Type[AbstractFunctionArray]#: The named_arrays.AbstractArray type corresponding to this array.

property type_explicit: Type[FunctionArray]#: The named_arrays.AbstractExplicitArray type corresponding to this array.

property value: FunctionArray#: Returns a new array with its units removed, if they exist.
