Inverting IRIS Observations with MART#
The main target of ESIS-I is the \(\text{O\,\textsc{v}}\;630\,\AA\) spectral line. To our knowledge, high-quality spectroheliograms of this line are not available to use as a test dataset. The Coronal Diagnostic Spectrometer (CDS) [Harrison et al., 1996] and the Solar Ultraviolet Measurements of Emitted Radiation (SUMER) [Wilhelm et al., 1995] have both observed this line, but their spatial or spectral resolution is not sufficient to use as a test for ESIS. Instead, we will use observations of the \(\text{Si\,\textsc{iv}}\;1394\,\AA\) spectral line from the Interface Region Imaging Spectrograph (IRIS) [De Pontieu et al., 2014] as a proxy for the \(\text{O\,\textsc{v}}\;630\,\AA\) line. These observations will be used along with a simple model of the ESIS instrument to create synthetic ESIS images. We will then use MART to invert these images and test how well it recovers the original scene.
[1]:
%reload_ext autoreload
%autoreload 2
[2]:
import IPython.display
import dataclasses
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.colors
import scipy.stats
import astropy.units as u
import astropy.visualization
import named_arrays as na
import optika
import iris
import ctis
import esis
Loading the Test Scene#
Load an IRIS observation to use as a test scene to invert. This function shifts and scales the \(\text{Si\,\textsc{iv}}\;1394\,\AA\) spectral line observed by IRIS to match the \(\text{O\,\textsc{v}}\;630\,\AA\) line observed by ESIS.
[3]:
%%time
scene = esis.flights.f1.data.synth.scene_iris(
time_start="2014-07-04 11:40",
velocity_max=150 * u.km / u.s,
)
CPU times: user 3min 33s, sys: 375 ms, total: 3min 34s
Wall time: 28.2 s
Subtract the average helioprojective \(x\) and \(y\) coordinates from the scene to place the observation at disk center.
[4]:
scene.inputs.position = scene.inputs.position - scene.inputs.position.mean()
Select the first frame of the observation to invert.
[5]:
scene = scene[{scene.axis_time: 0}]
scene.timedelta = scene.timedelta[{scene.axis_time: 0}]

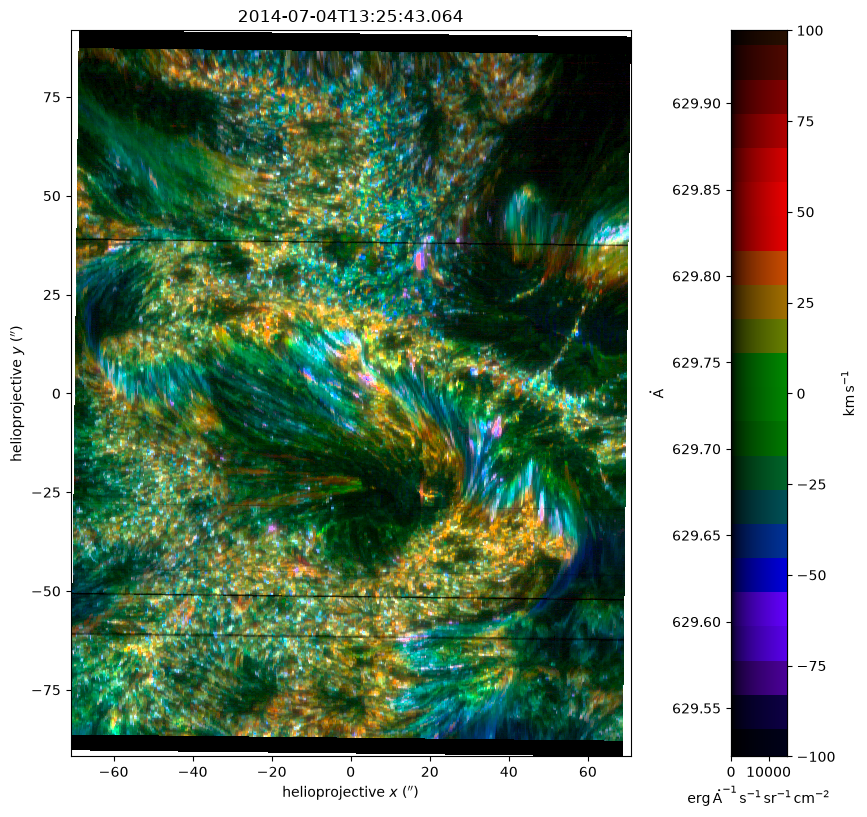

Display the test scene as a false-color image.
[6]:
scene.show();

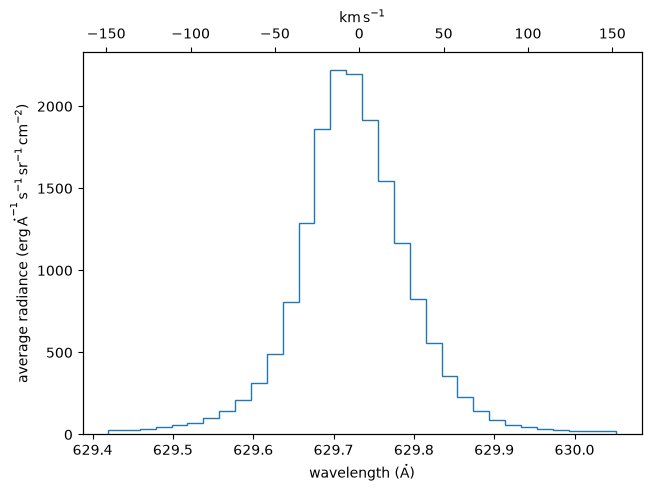

Plot the average spectrum of the test scene.
[7]:

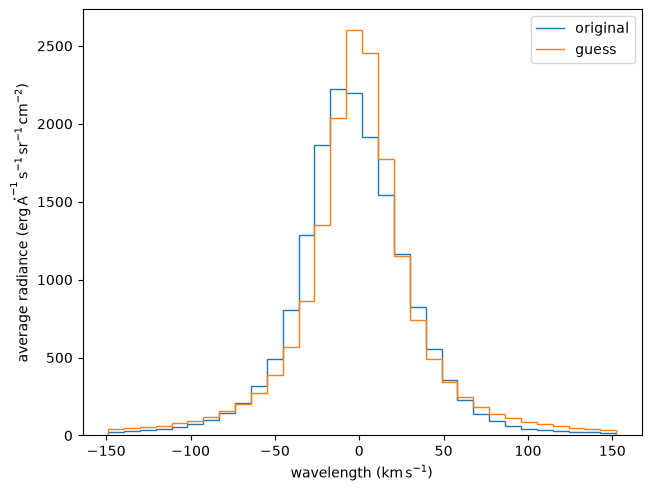

with astropy.visualization.quantity_support():
fig, ax = plt.subplots(constrained_layout=True)
ax_twin = ax.twiny()
na.plt.stairs(
scene.inputs.wavelength,
scene.outputs.mean((scene.axis_detector_x, scene.axis_detector_y)),
ax=ax,
label="original",
axis=scene.axis_wavelength,
)
na.plt.stairs(
scene.inputs.velocity,
scene.outputs.mean((scene.axis_detector_x, scene.axis_detector_y)),
ax=ax_twin,
label="original",
axis=scene.axis_wavelength,
linestyle="none",
)
ax.set_xlabel(f"wavelength ({ax.get_xlabel()})")
ax.set_ylabel(f"average radiance ({ax.get_ylabel()})");
Defining a Model of the ESIS Instrument#
In this tutorial we’ll use an idealized version of the ESIS instrument model that considers only dispersion and shot noise.
We’ll start by saving the rest wavelength of the \(\text{O}\,\textsc{v}\;630\,\AA\) line.
[8]:
wavelength_rest = scene.inputs.wavelength_rest
Use the rest wavelength to define an astropy.units equivalency for converting between Doppler velocities and wavelength units.
[9]:
AA = dict(unit=u.AA, equivalencies=u.doppler_optical(wavelength_rest))
Use the coordinates of the scene as the coordinates of the reconstructed scene.
[10]:
coordinates_scene = scene.inputs
Define the vertices of the pixel grid on the sensor.
[11]:
position_sensor = na.Cartesian2dVectorArray(
x=na.arange(0, 300 + 1, axis="sensor_x") * u.pix,
y=na.arange(0, 300 + 1, axis="sensor_y") * u.pix,
)
[12]:
coordinates_sensor = na.SpectralPositionalVectorArray(
wavelength=scene.inputs.wavelength,
position=position_sensor,
)
Define the dispersion angles of the simulated ESIS instrument and add an arbitrary offset so that the dispersion directions are not aligned with the pixel grid of the scene.
[13]:
angle = na.linspace(0, 180, num=4, axis="channel", endpoint=False) * u.deg
angle = angle + 0.4 * u.rad
angle.ndarray
[13]:
$[22.918312,~67.918312,~112.91831,~157.91831]\mathrm{{}^{\circ}}$
Define a unique string for each channel.
[14]:
channel = "dispersion angle = " + angle.to_string_array("%03d")
Compute the effective area of ESIS using values from the instrument paper draft.
[15]:
ccd = optika.sensors.materials.e2v_ccd97()
absorbance = ccd.absorbance(
wavelength=wavelength_rest,
normal=na.Cartesian3dVectorArray(0, 0, -1),
).average
area_effective = 4 * u.mm ** 2 / 0.39 * absorbance.ndarray
area_effective
[15]:
$5.5899989 \; \mathrm{mm^{2}}$
Define the name of the logical axis representing the different channels of the ESIS instrument.
[16]:
axis_channel = "channel"
Using the values we computed above, construct a model of the ESIS instrument.
[17]:
instrument = ctis.instruments.IdealInstrument(
area_effective=area_effective,
timedelta_exposure=10 * u.s,
plate_scale=0.77 * u.arcsec / u.pix,
dispersion=((17.5 * u.km / u.s).to(**AA) - wavelength_rest) / u.pix,
angle=angle,
wavelength_ref=wavelength_rest,
position_ref=na.Cartesian2dVectorArray(150, 150) * u.pix,
coordinates_scene=coordinates_scene,
coordinates_sensor=coordinates_sensor,
channel=channel,
axis_channel=axis_channel,
axis_wavelength=scene.axis_wavelength,
axis_scene_xy=(scene.axis_detector_x, scene.axis_detector_y),
axis_sensor_xy=("sensor_x", "sensor_y"),
)
Create synthetic ESIS images#
To calculate synthetic images, all we need to do is apply the image() method to the IRIS observation we prepared.
[18]:
%%time
images = instrument.image(scene)
CPU times: user 5min 39s, sys: 3.33 s, total: 5min 43s
Wall time: 1min 41s

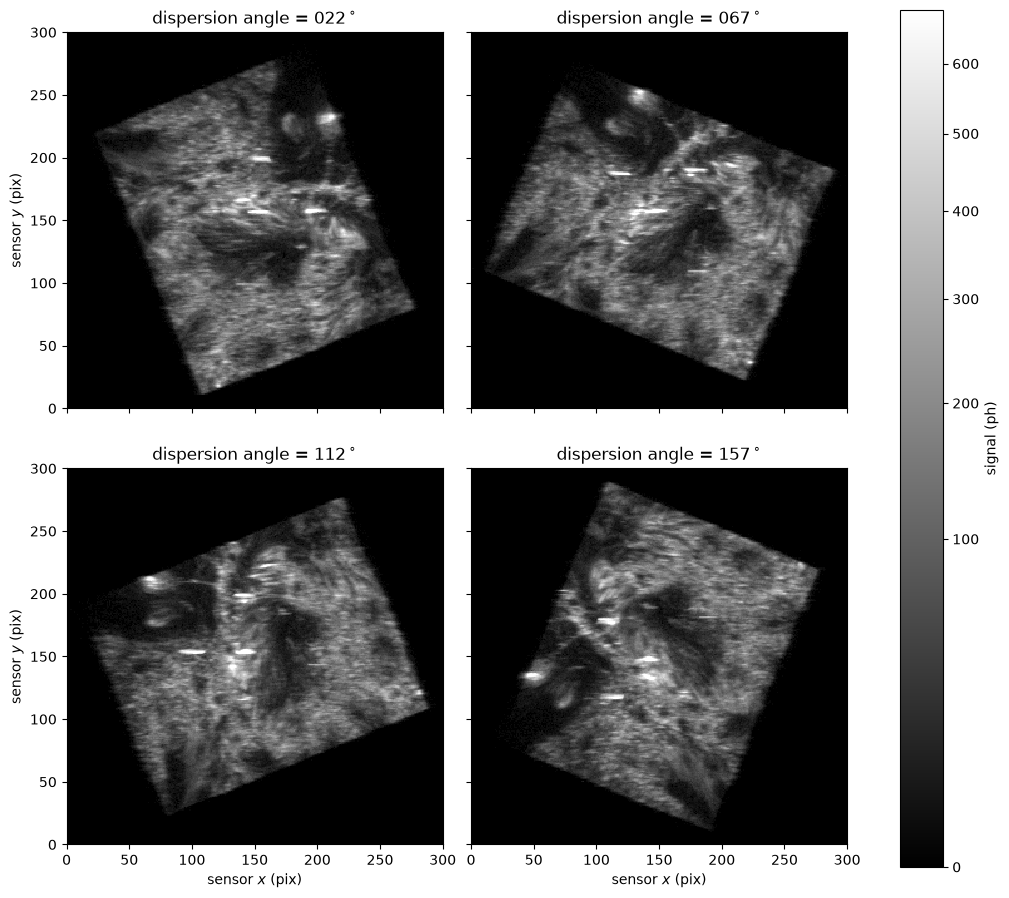

[19]:
with astropy.visualization.quantity_support():
fig, axs = na.plt.subplots(
axis_rows="rows",
axis_cols="cols",
nrows=2,
ncols=2,
constrained_layout=True,
figsize=(10,9),
sharex=True,
sharey=True,
origin="upper",
)
ax = axs.combine_axes(("rows", "cols"), axis_channel)
norm = matplotlib.colors.PowerNorm(
gamma=0.5,
vmin=0,
vmax=images.outputs.value.percentile(99.9).ndarray,
)
colorizer = plt.Colorizer(
cmap="gray",
norm=norm,
)
img = na.plt.pcolormesh(
# channel,
images.inputs.position.x,
images.inputs.position.y,
C=images.outputs.value,
ax=ax,
colorizer=colorizer,
)
plt.colorbar(
mappable=plt.cm.ScalarMappable(colorizer=colorizer),
ax=ax.ndarray,
label=f"signal ({images.outputs.unit:latex_inline})",
)
na.plt.set_title(channel, ax=ax)
na.plt.set_aspect("equal", ax=ax)
na.plt.set_xlabel(f"sensor $x$ ({images.inputs.position.x.unit})", ax=axs[dict(rows=~0)])
na.plt.set_ylabel(f"sensor $y$ ({images.inputs.position.y.unit})", ax=axs[dict(cols=0)])
Invert synthetic ESIS images#
Now for the tricky part, inverting these images into a reconstructed scene using MART. An important part of using MART effectively is the initial guess supplied to the algorithm.
[20]:
%%time
image_separated = instrument.image(scene, integrate=False, noise=False)
CPU times: user 9.42 s, sys: 96.9 ms, total: 9.51 s
Wall time: 1.67 s
[21]:
%%time
backprojected = instrument.backproject(image_separated, integrate=False)
CPU times: user 35.9 s, sys: 2.91 s, total: 38.8 s
Wall time: 10.6 s
[22]:
%%time
scene_degraded = np.mean(backprojected, axis=axis_channel, keepdims=False)
scene_degraded.shape
CPU times: user 6.43 s, sys: 990 ms, total: 7.42 s
Wall time: 7.42 s
[22]:
{'velocity': 32, 'detector_x': 400, 'detector_y': 1095}
[23]:
scene_degraded = scene_degraded.replace(inputs=scene.inputs)
[24]:
backprojected.outputs.sum().to(scene.outputs.unit) / 4
[24]:
ScalarArray(
ndarray=7.41298642e+09 erg / (Angstrom s sr cm2),
axes=(),
)
[25]:
coords_scene_single = coordinates_scene.replace(wavelength=images.inputs.wavelength)
coords_sensor_single = images.inputs
[26]:
instrument_single = dataclasses.replace(
instrument,
coordinates_scene=coords_scene_single,
coordinates_sensor=coords_sensor_single,
)
[27]:
s = instrument_single.backproject(images) * scene.outputs.shape[scene.axis_wavelength]
[28]:
smin = np.min(s, axis=axis_channel)[{axis_channel: 0}]
[29]:
s.shape
[29]:
{'channel': 4, 'velocity': 1, 'detector_x': 400, 'detector_y': 1095}
[30]:
smin.shape
[30]:
{'velocity': 1, 'detector_x': 400, 'detector_y': 1095}
[31]:
scene.shape
[31]:
{'detector_x': 400, 'detector_y': 1095, 'velocity': 32}
[32]:

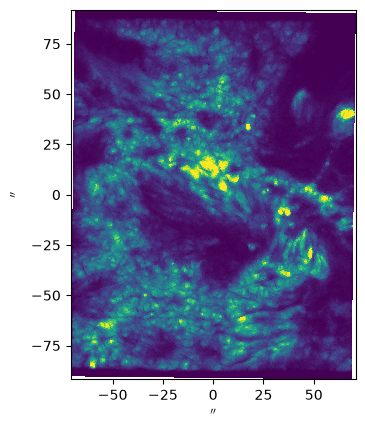

with astropy.visualization.quantity_support():
fig, ax = plt.subplots()
na.plt.pcolormesh(
smin.inputs.position.x,
smin.inputs.position.y,
C=smin.outputs[{axis_channel: 0, scene.axis_wavelength:0 }].value,
vmin=0,
vmax=np.percentile(smin.outputs, 99.5).value,
)
ax.set_aspect("equal")
[33]:
mart = ctis.inverters.MartInverter(
instrument=instrument,
intermediate=True,
num_iteration=20,
)
[34]:
spectrum_avg = scene.outputs.mean((scene.axis_detector_x, scene.axis_detector_y))
spectrum_avg = spectrum_avg / spectrum_avg.sum()
[35]:
std_OV = esis.flights.f1.spectrum.O_V.width_doppler
v = scene.inputs.velocity.cell_centers(scene.axis_wavelength)
# guess_spectral = np.exp(-np.square(v / std_OV) / 2)
std_OV = 37.5 * 1.5 * u.km / u.s
kappa = 0.2
v0 = 0 * u.km / u.s
guess_spectral = (1 + np.square((v - v0) / std_OV) / kappa)**(-kappa - 1)
guess_spectral = guess_spectral / guess_spectral.sum()
[36]:
guess_spatial = smin.outputs
# guess_spatial = guess_spatial.broadcast_to(scene.outputs.shape)
guess_spatial = guess_spatial / guess_spatial.sum()
guess_spatial.sum()
[36]:
ScalarArray(
ndarray=1. ,
axes=(),
)
[37]:
guess_total = backprojected.outputs.sum().to(scene.outputs.unit) / 4
guess_total
[37]:
ScalarArray(
ndarray=7.41298642e+09 erg / (Angstrom s sr cm2),
axes=(),
)
[38]:
guess = guess_spectral * guess_spatial * guess_total
# guess = spectrum_avg * scene.outputs.sum()
[39]:
with astropy.visualization.quantity_support():
fig, ax = plt.subplots(constrained_layout=True)
na.plt.stairs(
scene.inputs.velocity,
scene.outputs.mean((scene.axis_detector_x, scene.axis_detector_y)),
ax=ax,
label="original",
axis=scene.axis_wavelength,
)
na.plt.stairs(
scene.inputs.velocity,
guess.mean((scene.axis_detector_x, scene.axis_detector_y)),
label="guess",
axis=scene.axis_wavelength,
)
ax.set_xlabel(f"wavelength ({ax.get_xlabel()})")
ax.set_ylabel(f"average radiance ({ax.get_ylabel()})");
ax.legend()
[40]:
guess.sum()
[40]:
ScalarArray(
ndarray=7.41298642e+09 erg / (Angstrom s sr cm2),
axes=(),
)
[41]:
scene.outputs.sum()
[41]:
ScalarArray(
ndarray=7.42002096e+09 erg / (Angstrom s sr cm2),
axes=(),
)
[42]:
%%time
inversion = mart(images, guess=guess, verbose=True)
i=0
/opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/astropy/units/quantity.py:648: RuntimeWarning: divide by zero encountered in divide
result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/astropy/units/quantity.py:648: RuntimeWarning: invalid value encountered in divide
result = super().__array_ufunc__(function, method, *arrays, **kwargs)
merit: ScalarArray(
ndarray=599.29128415 ,
axes=(),
)
i=1
merit: ScalarArray(
ndarray=264.42515065 ,
axes=(),
)
i=2
merit: ScalarArray(
ndarray=46.1096351 ,
axes=(),
)
i=3
merit: ScalarArray(
ndarray=31.75197918 ,
axes=(),
)
i=4
merit: ScalarArray(
ndarray=34.46690787 ,
axes=(),
)
i=5
merit: ScalarArray(
ndarray=50.53281379 ,
axes=(),
)
i=6
merit: ScalarArray(
ndarray=91.28852903 ,
axes=(),
)
i=7
merit: ScalarArray(
ndarray=187.06633818 ,
axes=(),
)
i=8
merit: ScalarArray(
ndarray=409.95382707 ,
axes=(),
)
i=9
merit: ScalarArray(
ndarray=928.71129538 ,
axes=(),
)
i=10
merit: ScalarArray(
ndarray=2137.3105637 ,
axes=(),
)
i=11
merit: ScalarArray(
ndarray=4954.98950724 ,
axes=(),
)
i=12
merit: ScalarArray(
ndarray=11526.52205799 ,
axes=(),
)
i=13
merit: ScalarArray(
ndarray=26856.2769158 ,
axes=(),
)
i=14
merit: ScalarArray(
ndarray=62619.93560501 ,
axes=(),
)
i=15
merit: ScalarArray(
ndarray=146050.85172476 ,
axes=(),
)
i=16
merit: ScalarArray(
ndarray=340640.35574936 ,
axes=(),
)
i=17
merit: ScalarArray(
ndarray=794308.62137741 ,
axes=(),
)
i=18
merit: ScalarArray(
ndarray=1851363.72201749 ,
axes=(),
)
i=19
merit: ScalarArray(
ndarray=4312350.70646956 ,
axes=(),
)
/opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/ctis/inverters/_iterative/_mart/_mart.py:167: UserWarning: Max number of iterations (20) exceeded.
warnings.warn(message)
CPU times: user 6min 24s, sys: 11 s, total: 6min 35s
Wall time: 1min 19s
[43]:
axis_iter = inversion.inverter.axis_iteration
[44]:

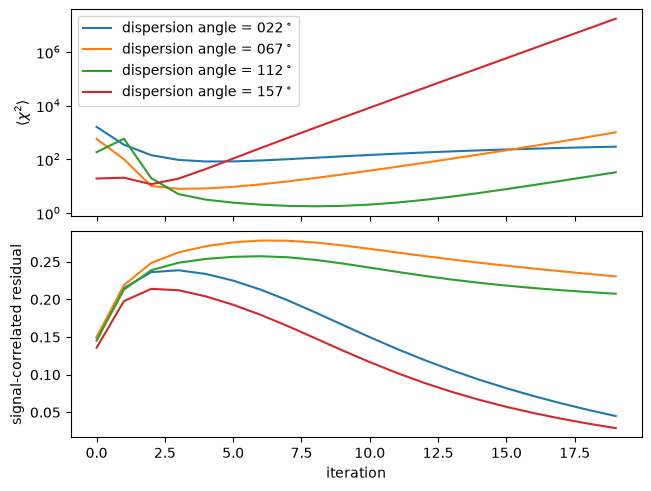

fig, ax = plt.subplots(
nrows=2,
sharex=True,
constrained_layout=True,
)
na.plt.plot(
inversion.iteration,
inversion.mean_chi_squared,
ax=ax[0],
axis=axis_iter,
label=channel,
)
na.plt.plot(
inversion.iteration,
inversion.correlation_residual,
ax=ax[1],
axis=axis_iter,
label=channel,
)
ax[0].set_ylabel(r"$\langle \chi^2 \rangle$")
ax[1].set_xlabel("iteration")
ax[1].set_ylabel("signal-correlated residual")
ax[0].set_yscale("log")
ax[0].legend();
[45]:
solution = inversion.solution
[46]:
with astropy.visualization.quantity_support():
fig, ax = plt.subplots(constrained_layout=True)

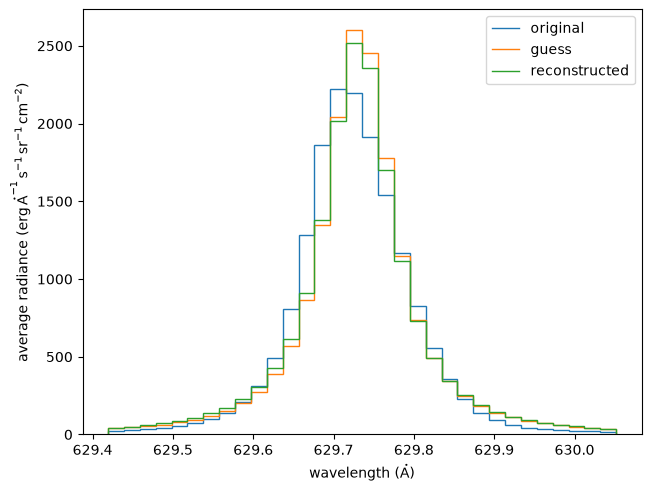

na.plt.stairs(
scene.inputs.wavelength,
scene.outputs.mean((scene.axis_detector_x, scene.axis_detector_y)),
ax=ax,
label="original",
)
na.plt.stairs(
scene.inputs.wavelength,
guess.mean((scene.axis_detector_x, scene.axis_detector_y)),
label="guess",
axis=scene.axis_wavelength,
)
na.plt.stairs(
solution.inputs.wavelength,
solution.outputs.mean((scene.axis_detector_x, scene.axis_detector_y)),
ax=ax,
label="reconstructed",
)
ax.set_xlabel(f"wavelength ({ax.get_xlabel()})")
# ax2.set_xlabel(f"wavelength ({ax2.get_xlabel()})")
ax.set_ylabel(f"average radiance ({ax.get_ylabel()})")
ax.legend()
[47]:
with astropy.visualization.quantity_support():
fig, axs = plt.subplots(
ncols=3,
gridspec_kw=dict(width_ratios=[.5, .5, .1]),
constrained_layout=True,
figsize=(10, 6),
)
ax1, ax2, cax = axs
ax2.set_yticklabels([])
vmin = np.nanpercentile(
a=scene.outputs,
q=0.5,
axis=(scene.axis_detector_x, scene.axis_detector_y),
)
vmax = np.nanpercentile(
a=scene.outputs,
q=99.5,
axis=(scene.axis_detector_x, scene.axis_detector_y),
)
wavelength_min=-100 * u.km / u.s,
wavelength_max=+100 * u.km / u.s,

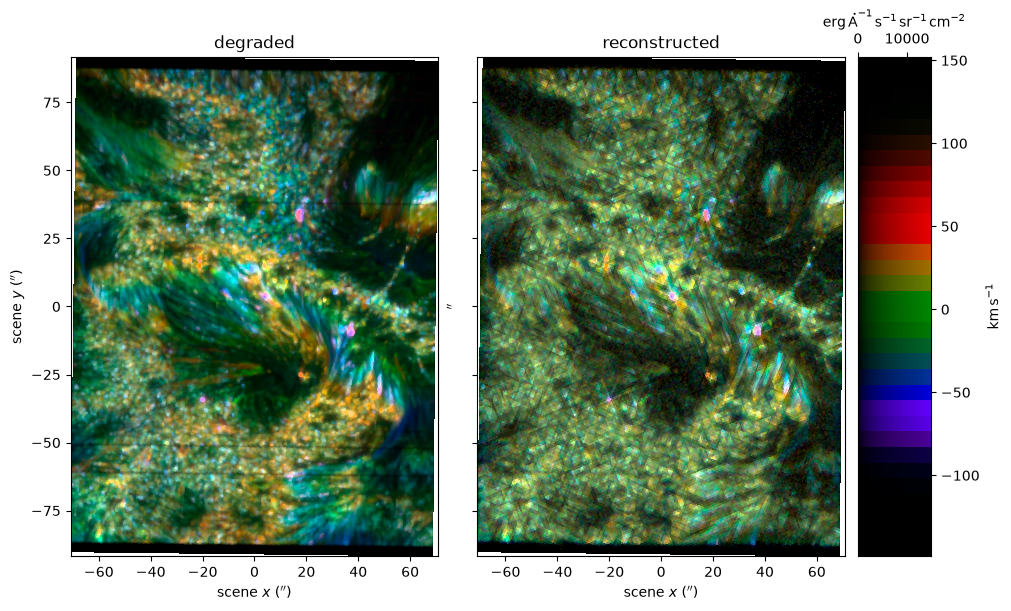

na.plt.rgbmesh(
scene.inputs.velocity.cell_centers(scene.axis_wavelength),
scene.inputs.position.x,
scene.inputs.position.y,
C=scene_degraded.outputs,
axis_wavelength=scene.axis_wavelength,
ax=ax1,
vmin=vmin,
vmax=vmax,
wavelength_min=-100 * u.km / u.s,
wavelength_max=+100 * u.km / u.s,
)
colorbar = na.plt.rgbmesh(
scene.inputs.velocity.cell_centers(scene.axis_wavelength),
scene.inputs.position.x,
scene.inputs.position.y,
C=solution.outputs,
axis_wavelength=scene.axis_wavelength,
ax=ax2,
vmin=vmin,
vmax=vmax,
wavelength_min=-100 * u.km / u.s,
wavelength_max=+100 * u.km / u.s,
)
na.plt.pcolormesh(
C=colorbar,
axis_rgb=scene.axis_wavelength,
ax=cax,
)
ax1.set_title("degraded")
ax2.set_title("reconstructed")
unit_x = scene.inputs.position.x.unit
unit_y = scene.inputs.position.y.unit
ax1.set_xlabel(f"scene $x$ ({unit_x:latex_inline})")
ax2.set_xlabel(f"scene $x$ ({unit_x:latex_inline})")
ax1.set_ylabel(f"scene $y$ ({unit_y:latex_inline})")
cax.xaxis.set_ticks_position("top")
cax.xaxis.set_label_position("top")
cax.yaxis.tick_right()
cax.yaxis.set_label_position("right")
[48]:
with astropy.visualization.quantity_support():
fig, ax = plt.subplots(
ncols=2,
constrained_layout=True,
sharex=True,
sharey=True,
figsize=(6, 5),
)
i = {scene.axis_detector_x: 210}
vmax = scene_degraded.outputs.percentile(99.9).ndarray.value
norm = matplotlib.colors.PowerNorm(gamma=0.5, vmin=0, vmax=vmax)
na.plt.pcolormesh(
scene.inputs.velocity[{scene.axis_detector_x: 0, scene.axis_detector_y: 0}],
scene.inputs.position.y[i],
C=scene_degraded.outputs[i].value,
ax=ax[0],
norm=norm,
)
ani = na.plt.pcolormovie(
inversion.iteration,
scene.inputs.velocity[{scene.axis_detector_x: 0, scene.axis_detector_y: 0}],
inversion.solutions.inputs.position.y[i],
C=inversion.solutions.outputs[i].to_value(scene_degraded.outputs.unit),
ax=ax[1],
axis_time=inversion.inverter.axis_iteration,
norm=norm,
)
ax[0].set_title("original")
ax[1].set_title("reconstruction")
result = ani.to_jshtml(fps=10)
result = IPython.display.HTML(result)
ani.save("mart-iris-spectra.gif", dpi=200, fps=30)
plt.close(ani._fig)
result
2026-07-08 20:22:09 - matplotlib.animation - INFO: Animation.save using <class 'matplotlib.animation.HTMLWriter'>
2026-07-08 20:22:15 - matplotlib.animation - WARNING: MovieWriter ffmpeg unavailable; using Pillow instead.
2026-07-08 20:22:15 - matplotlib.animation - INFO: Animation.save using <class 'matplotlib.animation.PillowWriter'>
[48]:
[49]:

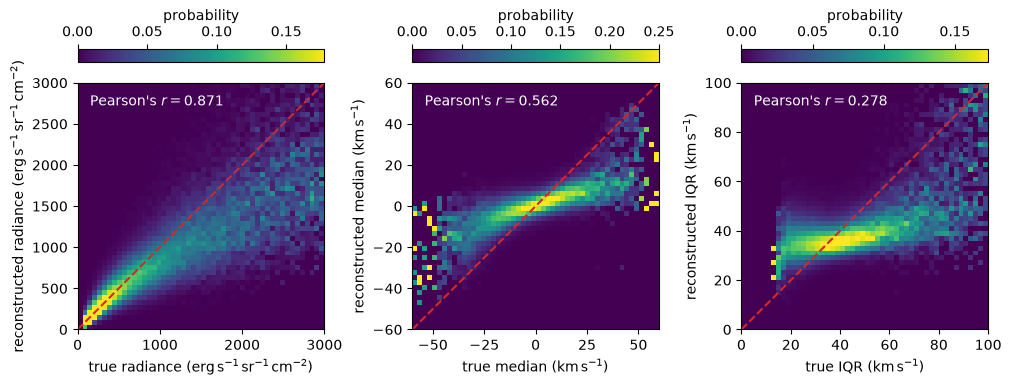

inversion.plot_moments(
truth=scene,
axis=scene.axis_wavelength,
range_radiance=[0, 3e3] * u.erg / u.s / u.sr / u.cm**2,
range_median=[-60, 60] * u.km / u.s,
range_iqr=[0, 100] * u.km / u.s,
percentile_radiance=25,
);
/opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/astropy/units/quantity.py:648: RuntimeWarning: invalid value encountered in divide
result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/named_arrays/_scalars/scalars.py:596: RuntimeWarning: invalid value encountered in divide
result_ndarray = getattr(function, method)(*inputs_ndarray, **kwargs_ndarray)
[50]:
%%time
predictions = instrument.image(solution, noise=False)
CPU times: user 10.8 s, sys: 102 ms, total: 10.9 s
Wall time: 1.6 s
[51]:
residual = images - predictions
[52]:

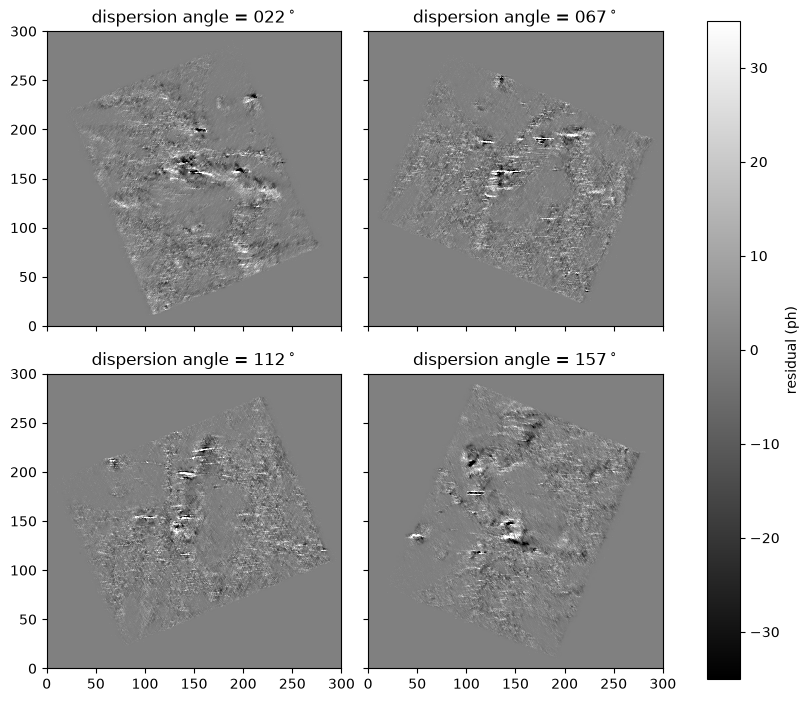

fig, ax = na.plt.subplots(
axis_rows="rows",
axis_cols="cols",
nrows=2,
ncols=2,
constrained_layout=True,
figsize=(8,7),
sharex=True,
sharey=True,
origin="upper",
)
ax = ax.reshape(dict(channel=-1))
vmin = -35
vmax = +35
img = na.plt.pcolormesh(
residual.inputs.position.x,
residual.inputs.position.y,
C=residual.outputs.value,
ax=ax,
vmin=vmin,
vmax=vmax,
cmap="gray",
)
na.plt.set_title
na.plt.set_aspect("equal", ax=ax)
plt.colorbar(
ax=ax.ndarray,
mappable=img.ndarray[0],
label=f"residual ({residual.outputs.unit:latex_inline})",
);
na.plt.set_title(channel, ax=ax);
[53]:
float(scipy.stats.spearmanr(predictions.outputs.ndarray.reshape(-1), residual.outputs.ndarray.reshape(-1)).statistic)
[53]:
-0.06068839474909354
[54]:
float(scipy.stats.pearsonr(predictions.outputs.ndarray.reshape(-1), residual.outputs.ndarray.reshape(-1)).statistic)
[54]:
0.12736842189878808
[55]:
images_perfect = instrument.image(scene, noise=False)
[56]:
inversion.inverter.mean_chi_squared(
images.outputs,
images_perfect.outputs,
)
[56]:
ScalarArray(
ndarray=[0.98277884, 1.07684393, 0.97616402, 1.00012152] ,
axes=('channel',),
)
[57]:
inversion.inverter.correlation_residual(
images.outputs,
predictions.outputs,
).ptp()
[57]:
ScalarArray(
ndarray=0.20160991 ,
axes=(),
)
[58]:
# with astropy.visualization.quantity_support():
# fig, axs = plt.subplots(
# ncols=3,
# gridspec_kw=dict(width_ratios=[.5, .5, .1]),
# constrained_layout=True,
# figsize=(10, 6),
# )
# ax1, ax2, cax = axs
# ax2.set_yticklabels([])
# vmax = np.nanpercentile(
# a=scene.outputs,
# q=99.5,
# axis=(scene.axis_detector_x, scene.axis_detector_y),
# )
# na.plt.rgbmesh(
# C=scene_degraded,
# axis_wavelength="wavelength",
# ax=ax1,
# vmin=0,
# vmax=vmax,
# )
# label = "iteration = " + inversion.iteration.to_string_array("%d")
# chisq_str = r"$\langle \chi^2 \rangle$"
# label = label + f"\n{chisq_str} = " + inversion.mean_chi_squared.mean("channel").to_string_array("%.03f")
# ani, colorbar = na.plt.rgbmovie(
# label,
# scene.velocity_doppler,
# scene.inputs.position.x,
# scene.inputs.position.y,
# C=inversion.solutions.outputs,
# axis_time=inversion.inverter.axis_iteration,
# axis_wavelength="wavelength",
# ax=ax2,
# vmin=0,
# vmax=vmax,
# )
# na.plt.pcolormesh(
# C=colorbar,
# axis_rgb="wavelength",
# ax=cax,
# )
# ax1.set_title("original")
# ax2.set_title("reconstructed")
# unit_x = scene.inputs.position.x.unit
# unit_y = scene.inputs.position.y.unit
# ax1.set_xlabel(f"scene $x$ ({unit_x:latex_inline})")
# ax2.set_xlabel(f"scene $x$ ({unit_x:latex_inline})")
# ax1.set_ylabel(f"scene $y$ ({unit_y:latex_inline})")
# cax.xaxis.set_ticks_position("top")
# cax.xaxis.set_label_position("top")
# cax.yaxis.tick_right()
# cax.yaxis.set_label_position("right")
# result = ani.to_jshtml(fps=30)
# result = IPython.display.HTML(result)
# ani.save("mart-iris-rgb.mp4")
# plt.close(ani._fig)
# result
mulitply counts by 10 to see how it changes the results
smooth the outputs before taking the residual (and computing the moments)
negative correlation coefficient implies that we went a little too far (crossed zero)
\(d \chi = \frac{d' - d}{\sqrt{d}}\) contribution of the residual to the total chi square (SNR-weighted residual)
